Assembly Platforms


HEAVY COMPONENT ASSEMBLY LINE PLATFORMS

Ref no. ASSYPLAT001

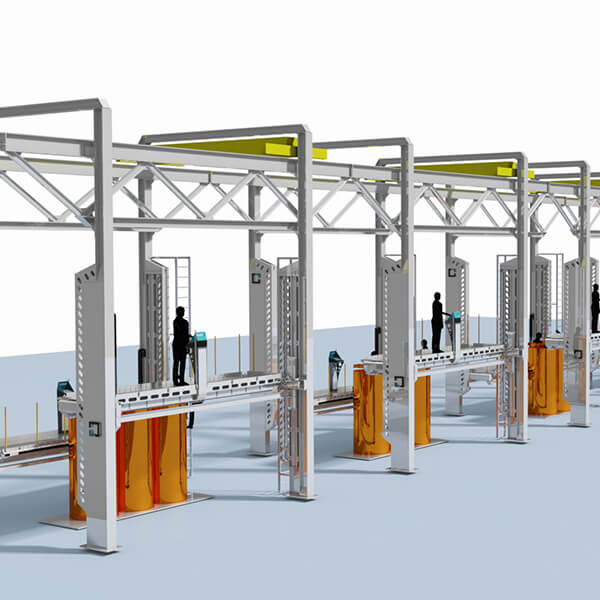

The assembly platforms have been designed specifically to accommodate the workflow of the product through the production line. Each platform is fitted with its own 5 ton overhead crane to assist with assembling heavy components.

The working platform can move in a vertical (up/down) and horizontal (in/out) direction. Extendable “fingers” can be manually positioned to reduce the space around the circumference of a round object. The platform is capable of lifting 1500kg in total. It is fitted with a low-friction ball screw and linear bearings which limit noise generation and wear during operation. The platform speed is regulated with a variable speed drive which insures a gradual decrease in speed when the platform is stopped. This reduces wear on the system components resulting in less maintenance being required. The platform controller will automatically stop the system if the mechanical limit switches are triggered. The platform can be controlled with the control panel on the platform or remotely with a wireless controller.

These platforms have been designed for operation in the production assembly lines.

Specifications

1

Modular

Fully Self contained with only Electrical Power Connection & Installation Interfaces.

2

Adverse Conditions

Design & Built to still give 100% Performance in extreme ambients of -10°C to 55°C.

3

Special Filtration

Primary self cleaning cyclone filters to remove 95% + of dust, secondary media, HEPA as option, UVC as option.

4

Low Noise

Automatic Fan speed control, cladded air channels & ducts.

5

Smart Control

On Board Intelligence and Data Logging. System safe running modes to eliminate immediate system shut down.

6

Slim Design

Designed to blend with Vehicle Ergonomics and Esthetic Design.

7

Rugged & Reliable

Solid construction for rough terrains and potential mechanical damage.



Product Video








Click to expand Gallery images

Specifications

Reference No: ASSYPLAT001

Lifting

1500kg
Lifting Speed 20 - 80mm/s
Control Wired/Remote Control (Wi-Fi)
Safety Features Nip guards on all moving parts
Trip wires to stop the system immediately
Equipped with upper and lower mechanical stops which cut power to the system
SPECIAL FEATURES
Low maintenance ball screw and linear bearings
Soft start & stop function
