VENTURI FLOW METER
6 - 10” VENTURI FLOW METERS
Ref no. SME Venturi Flow Meters

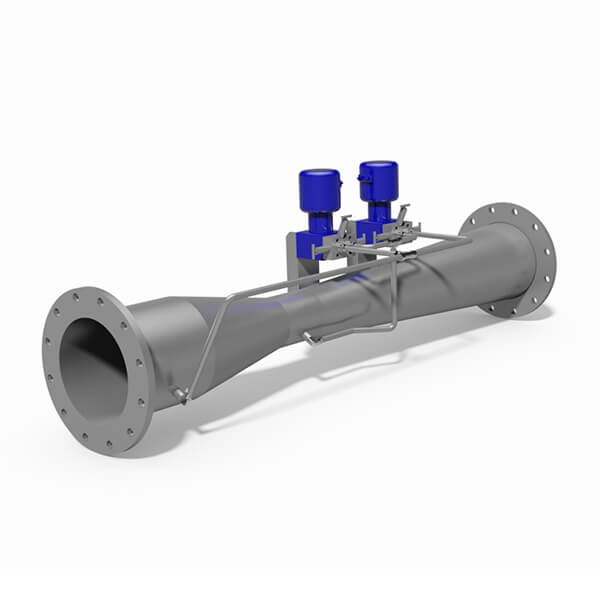

SME flow meters are manufactured from seamless 304L stainless steel sections. The sections are welded together to form the final Venturi Flow Meter configuration.
All SME Venturi Flow Meters are designed according to EN ISO 5167 standards. The Venturi Flow Meters are optimised for incompressible fluids at high flow rates and increased accuracy at low flow rates. To accommodate high and low flow rates, the flow meters are equipped with two differential pressure transducers for high and low flow rates.
The flow meters are rigid and can be used for the following applications:
- Cooling and heating plants
- Water purification plants
- Water distribution networks
- Mining industry
- Cooling towers
Specifications
Login to Access comprehensive content
Click to expand Gallery images
Specifications
[private role="subscriber"]
|
Characteristics of Flow Meter |
6” Venturi Flow Meters |
8” Venturi Flow Meters |
10” Venturi Flow Meters |
|
Operating Flow Range |
4 to 30L/s |
4 to 85L/s |
4 to 100L/s |
|
Ambient Conditions |
-20 to 85°C |
-20 to 85°C |
-20 to 85°C |
|
System Test Pressure |
10 Bar |
10 Bar |
10 Bar |
|
Supply Voltage Input |
24 - 30VDC |
24 - 30VDC |
24 - 30VDC |
|
Current Output Signal |
4 – 20mA, 2 wire; 2 sensors |
4 – 20mA, 2 wire; 2 sensors |
4 – 20mA, 2 wire; 2 sensors |
|
Flow Accuracy |
< 5L/s |
< 5L/s |
< 5L/s |
|
Flanges Specification |
SABS 1123/1000 |
SABS 1123/1000 |
SABS 1123/1000 |
