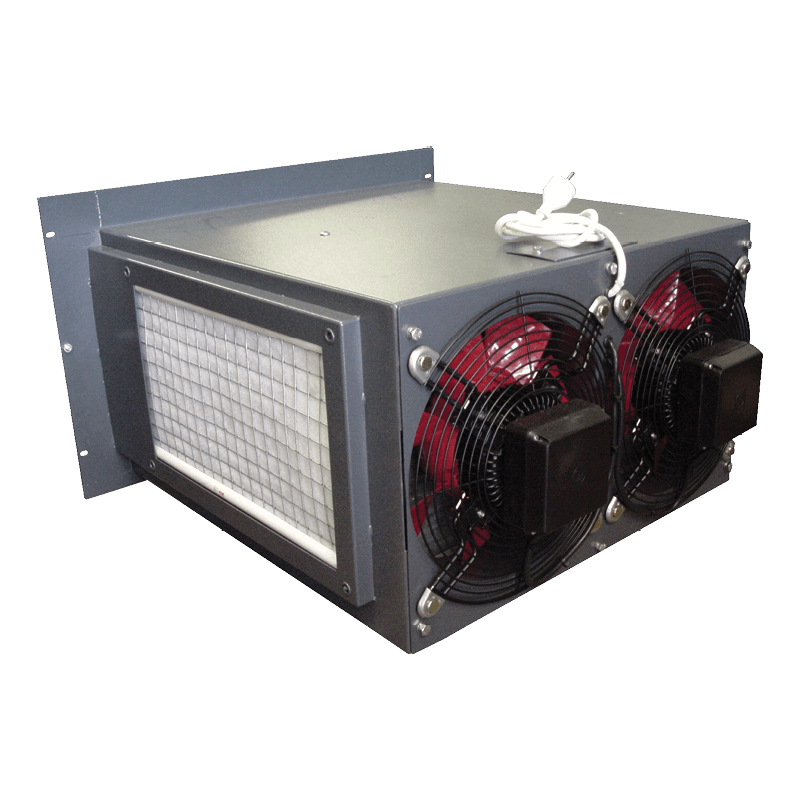

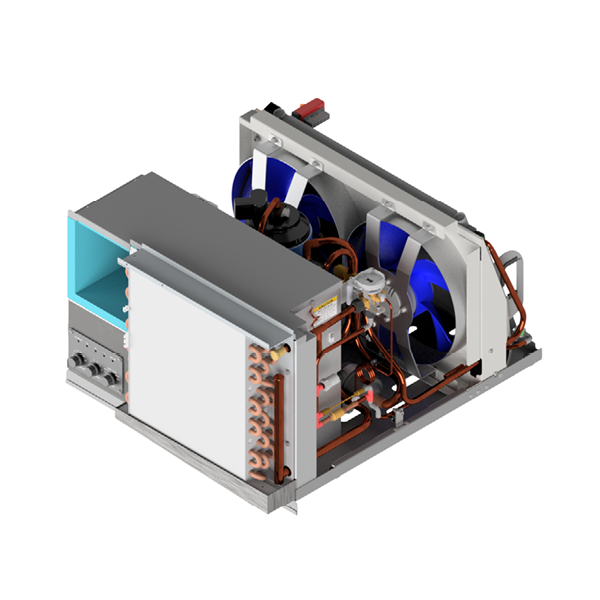

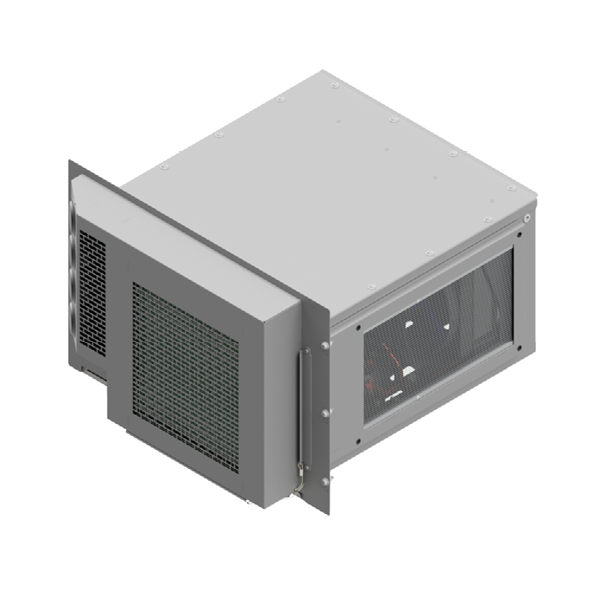

18E Front Panel Mount HVAC Unit


18E Front panel mount HVAC

Ref no. FPM18E

Modular air-conditioning system to supply 5,6kW cooling and 4kW heating to ensure a cabin temperature of 23–26°C max in a 45°C ambient, provided the loco is thermally insulated.

All electrical connections, looms components and the electronic control panel as well as electrical control gear are designed and selected for operation in the rail environment, which include adverse temperatures as well as severe shock and vibration.

The Aircon unit is equipped with a custom designed electronic power inverter, capable of all control and safety functions. The controller activates sub systems as required to regulate the cabin temperature to the desired setting on the control panel (HMI).

Product Video
Specifications

1

Modular

Fully Self contained with only Electrical Power Connection & Installation Interfaces.

2

Adverse Conditions

Design & Built to still give 100% Performance in extreme ambients of -10°C to 55°C.

3

Special Filtration

Primary self cleaning cyclone filters to remove 95% + of dust, secondary media, HEPA as option, UVC as option.

4

Low Noise

Automatic Fan speed control, cladded air channels & ducts.

5

Smart Control

On Board Intelligence and Data Logging. System safe running modes to eliminate immediate system shut down.

6

Slim Design

Designed to blend with Vehicle Ergonomics and Esthetic Design.

7

Rugged & Reliable

Solid construction for rough terrains and potential mechanical damage.

Product Video






Specifications

[private role="subscriber"]

Reference No: DRA-SM

Cooling Capacity

4kW @ 45°C Ambient Temperature

Heating Capacity 4.5kW @ 10°C
Operating Range -5°C to 48°C
Max Airflow 970m3/h
Power Input 230VAC, 15A

OPTIONAL EXTRAS

Custom fit interfaces for the 18E Locomotive

SME electronical HVAC PLC controller

Bluetooth diagnostic interface for maintenance tasks

Fault logging for reliability evaluation

Modular unit for increased repairability and reduction in lifecycle costs
