ACU & APU - BMP3 ICV


BMP3 ICV AUXILIARY POWER UNIT & AIR CONDITIONING SYSTEM

Ref no. BMP3-APUACU

The proposed APU/ACU system is custom designed for the BMP3 vehicle to enhance the vehicle operational features in terms of:

A modular Auxiliary Power Unit (APU) to supply:

  • 28V, 120A to charge the vehicle batteries or supply the total electrical requirement of the turret without starting the vehicle main engine as well as a possible WMS system.
  • 15kVA AC as full supply for the air conditioning system (ACU).

The APU/ACU system does not restrict the standard operational features of the vehicle in terms of firing, mobility and buoyancy (floating capability). With the APU/ACUs mounted, it will however not be possible to parachute-drop the vehicle from an aircraft.

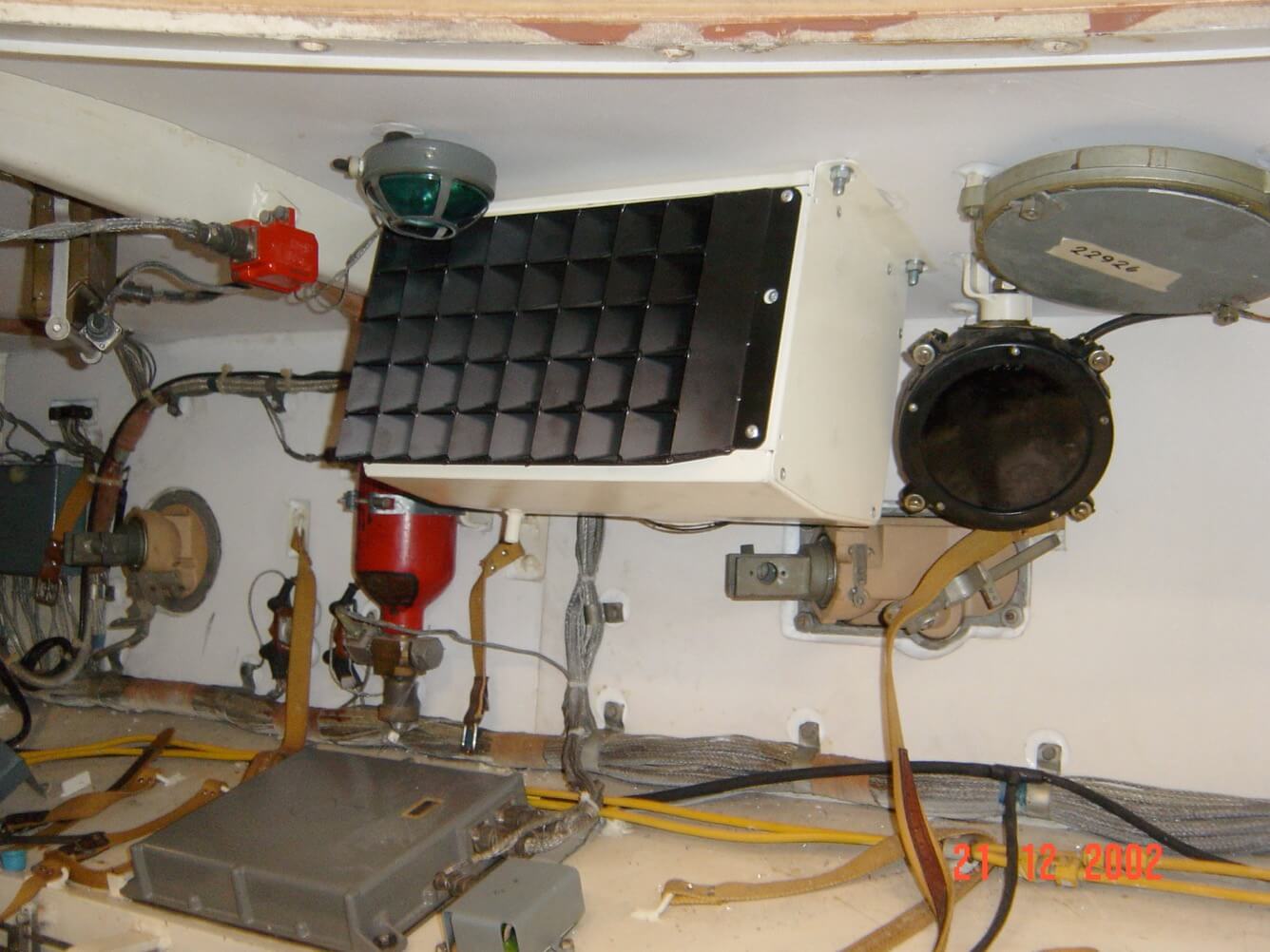

Installation of the units requires minimal vehicle modifications, and evaporators are mounted inside the vehicle in such a way that personnel actions and movement are virtually unaffected. As part of the upgrade, 10mm thermal insulation material also needs to be installed to cover at least 70% of sidewalls and roof areas. Furthermore, thermal blankets should be installed in the rear section between the crew and engine compartments to largely reduce heat gain and noise.

Though the vehicle length is extended with the APU and ACU fitted, it would, with minor modification (move spare wheel) to the tank-transporting trailer, still be possible to load two BMP3 vehicles on a single trailer.

Specifications
Product Video

1

Adverse Conditions

Design & Built to still give 100% Performance in extreme ambients of -10°C to 55°C.

2

Extreme Shock and Vibration

Typical Mobile Applications. Fatigue qualified for continuous and irractic shock and vibration.

3

Power Management

System can adapt and reduce capacity in accordance with power available.

4

Smart Control

On Board Intelligence and Data Logging. System safe running modes to eliminate immediate system shut down.

5

Mil.Std 810 & 461 Qualified

Design, Manufacturing and Qualification Conform to International Military Standards.

Click to expand Gallery images

Specifications

[private role="subscriber"]

Ref. BMP3-APUACU

Engine

Isuzu 3LD1 (Water Cooled)

AC Alternator

IP44 Lechmotoren 15kVA; 3 phase 380V

DC Alternator

120A DC Battery Charging

Cooling Capacity

12kW Aircon

Design Workpoint

22°C Cabin Temp in 55°C Ambient

[/private]
