G6 TPU, HVAC & CBRN

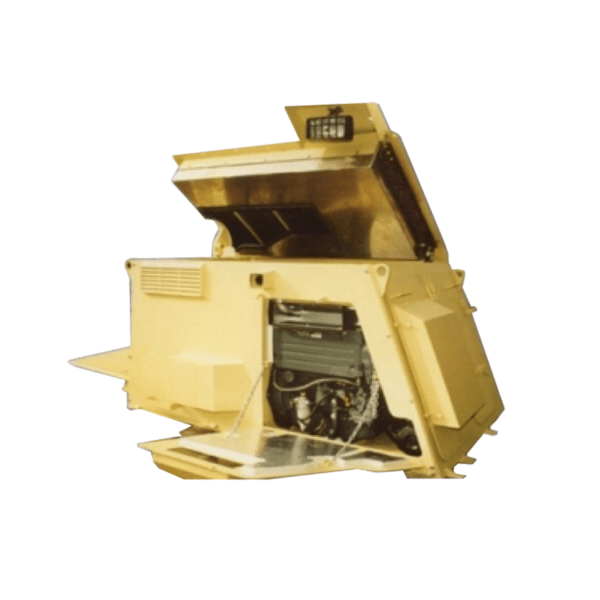

G6 30kW TURRET POWER UNIT (TPU), 18kW AIRCON SYSTEM & CBRN
Ref no. G6 APU ACU
A modular bolt-on power pack with a 30kW 4-Cylinder Deutz engine fitted with a 28VDC 400A alternator. (25kW derated @ 2700rpm in 55°C Ambient)
- Supplies 28VDC, 400A to charge the 6 TPU and vehicle batteries or supply the total electrical requirement of the turret. This includes the DC Gun Control Motor, WMS system and supply aircon electric power without starting the vehicle main engine.
- Mechanical belts drive the two 9kW Aircon compressors.
- The TPU is fully automated with its own electric start, and onboard 100litre fuel tank.
The electrical connections, looms between the aircon, power units, electronic control panels and electrical control gear are designed and selected for operation in military environments, which include adverse temperatures, EMI/EMC as well as severe shock and vibration. The power unit is equipped with a custom designed electronic controller, capable of all control and safety functions, comprehensive BIT and power management
The air conditioning system has two belt driven 9kW compressors in tandem with an integrated 20 litre cold water chiller. The system also has a CBRN filtration module with servo valve remote switch over.
Specifications
1
Modular
Fully Self contained with only Electrical Power Connection & Installation Interfaces.
2
Adverse Conditions
Design & Built to still give 100% Performance in extreme ambients of -10°C to 55°C.
3
Special Filtration
Primary self cleaning cyclone filters to remove 95% + of dust, secondary media, HEPA as option, UVC as option.
4
Low Noise
Automatic Fan speed control, cladded air channels & ducts , noise attenuators.
5
Power Management
Fully Self contained with only Electrical Power Connection & Installation Interfaces.
6
Over Pressure Design
Regulates the fresh air supply to maintain a safe cabin overpressure in chemical hostile environments.
7
Smart Control
On Board Intelligence and Data Logging. System safe running modes to eliminate immediate system shut down.
8
Easy and Quick Maintenance
Simple access doors, removable subsystem modules.
9
Self Diagnostics
Onboard algorithms of transducer- and sensor inputs built into smart analyses and control enables accurate self diagnostics.
10
Mil.Std 810 & 461 Qualified
Design, Manufacturing and Qualification Conform to International Military Standards.
Click to expand Gallery images
Specifications
|
Ref. G6 APU ACU |
|
|
Engine Output Power Capacity |
25kW derated @ 2700rpm in 55°C Ambient |
|
Operating Envelope |
-10°C to 55°C |
|
Fuel |
100L fuel tank integrated |
|
28VDC Output Power |
400A @ 55°C derated |
|
Aircon Cooling Capacity |
18kW @ 55°C |
|
Fault Finding |
HMI/Bluetooth |
|
Weight |
1500kg |
|
Start Up |
Remote Automatic from HMI |
|
Dust Filtration for Combustion Air Intake (designed for 500mg/m3 sand & dust) |
95% efficient cyclones with exhaust venturi + secondary pleated media dust filter |
|
CBRN |
170m3/h in accordance with AEP54, 500Pa overpressure, remote switch over |
|
Load Control |
Fixed speed, (Dynamic Engine Speed Control to match load on request) |
