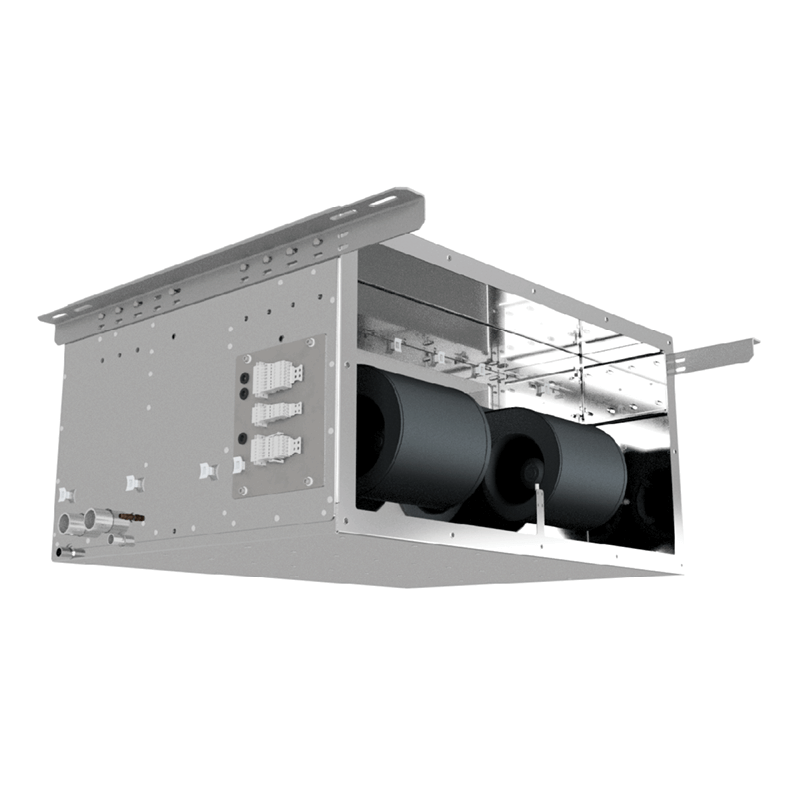

Ceiling Integrated Air Handling Unit

CEILING INTEGRATED AIR HANDLING UNIT

Ref no. AHU5/9

The Air Handling Unit supplies 5-9kW cooling or heating by means of a water/glycol medium liquid supplied from a chiller/heated reservoir. The configuration can be either a single or dual pipe circuit to allow for separate or combined heating/cooling.

Typically 3 to 4 units per coach.

Product Video

Specifications

1 Modular

Fully Self contained with only Electrical Power Connection & Installation Interfaces.

2 Adverse Conditions

Design & Built to still give 100% Performance in extreme ambients of -10°C to 55°C.

3 Special Filtration

Primary self cleaning cyclone filters to remove 95% + of dust, secondary media, HEPA as option, UVC as option.

4 Low Noise

Automatic Fan speed control, cladded air channels & ducts.

5 Smart Control

On Board Intelligence and Data Logging. System safe running modes to eliminate immediate system shut down.

6 Slim Design

Designed to blend with Vehicle Ergonomics and Esthetic Design.

7 Rugged & Reliable

Solid construction for rough terrains and potential mechanical damage.

Product Video

Login to Access comprehensive content

Specifications

[private role="subscriber"]

Ref No: DRA-SM

Capacity	5 to 9kW Cooling or Heating
Configuration	Single or Dual Liquid Circuit
Circuit	Water/Glycol
Total Weight	60-70kg
Construction	Aluminium Enclosure
Control	Fan Speed Control Optional: Servo Valve Control

3D View

PDF Download

Application
