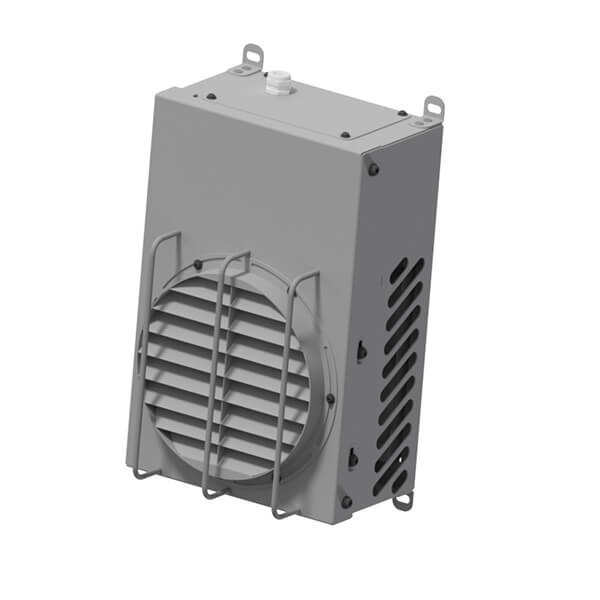

Loco Cab Heater


1.5kW FOOT HEATER FOR DIESEL/ELECTRIC LOCOMOTIVE

Ref no. MCH15

  • The Foot Heater can be mounted at any location on the inside of the locomotive to supply 1.5kW of heating. The operator can switch the foot heater between the following modes:

    • High heat (1.5kW)
    • Low heat (0.75kW)
    • Vent (0kW)


    The system uses dual cut-off switches, to ensure heating elements will switch off in case of fan failure. 6 x Stainless steel tube elements are used, each with a heating capacity of 0.25kW. The heated air can be directed in any direction by means of a round outlet vent which can be rotated 360°.

    The electrical connections, looms between the aircon, power units, electronic control panels and electrical control gear are designed and selected for operation in railway environments, which include adverse temperatures as well as severe shock and vibration.

    Installation of the unit requires minimal modifications. SME can also “repackage” this system in an enclosure which would fit any client’s requirements.

Product Video
Specifications

1

Modular

Fully Self contained with only Electrical Power Connection & Installation Interfaces.

2

Adverse Conditions

Design & Built to still give 100% Performance in extreme ambients of -10°C to 55°C.

3

Special Filtration

Primary self cleaning cyclone filters to remove 95% + of dust, secondary media, HEPA as option, UVC as option.

4

Low Noise

Automatic Fan speed control, cladded air channels & ducts.

5

Smart Control

On Board Intelligence and Data Logging. System safe running modes to eliminate immediate system shut down.

6

Slim Design

Designed to blend with Vehicle Ergonomics and Esthetic Design.

7

Rugged & Reliable

Solid construction for rough terrains and potential mechanical damage.

Product Video






Specifications

[private role="subscriber"]

Reference No: MCH15

Heating Capacity

1.5kW (high setting), 0.75kW (low setting)

Heating Element Type

Stainless steel tube element (Black Heat, 3.67W/cm2)

Air Flow

320m3h

Power Input

400VAC; 3A

Dimensions

178mm L x 250mm W x 394mm H

Weight

9.5kg

Safety

Dual cut-out switches

Air Distribution

Air outlet rotatable to any direction

PDF Download

Application
