HVAC - Casspir MRAP

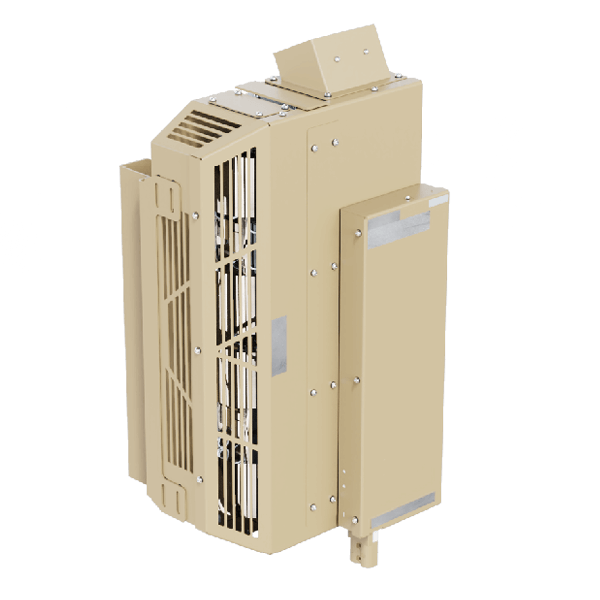

16kW HVAC VERTICAL EVAPORATOR UNITS FOR MRAP VEHICLES

Ref no. MSDI8

The MSDI8 is a 16kW dual evaporator split air conditioning system. The evaporators are designed to be universal modules which can be mounted in various positions inside an APC. The ducting interface is custom designed to suit the vehicle-specific roof/turret layout.

Mounting brackets are designed to suit the required interfaces and each evaporator unit contains two dual scroll blowers. The electrical control box can be mounted on either the evaporator enclosure or as a freestanding unit. A choice of two condenser configurations is available: A condenser pack which is mounted in front of the engine radiator or an enclosed condenser unit which is mounted on the outside of the vehicle as a module containing the condenser, heat exchanger, cores and cooling fans.

The compressor is mounted to be directly belt-driven from the vehicle engine.

Specifications
Product Video

1

Adverse Conditions

Design & Built to still give 100% Performance in extreme ambients of -10°C to 55°C.

2

Low Noise

Automatic Fan speed control, cladded air channels & ducts.

3

Slim Design

Designed to blend with Vehicle Ergonomics and Esthetic Design.

4

Rugged & Reliable

Solid construction for rough terrains and potential mechanical damage.

5

Mil.Std 810 & 461 Qualified

Design, Manufacturing and Qualification Conform to International Military Standards.

Click to expand Gallery images

Specifications

Ref. MSDI-8

Cooling Capacity

8-16kW versions available

Operating Envelope

-10°C to 55°C

Refrigerant

R134a

Supply Power

AC or DC powered options

Fault Finding

HMI/Bluetooth/Datalogging

Network

CAN Bus

Weight & Dimensions

35kg; (1040mm H x 500mm W x 340mm D)

Protection

IP54

Optional

Heating Capacity

6kW Reverse Cycle or Engine Hot Water

Fresh Air

144m3/h (separate module)

UV-C Filtration

Cabin and aircon options can be offered
