APU for Urban Forces Vehicles

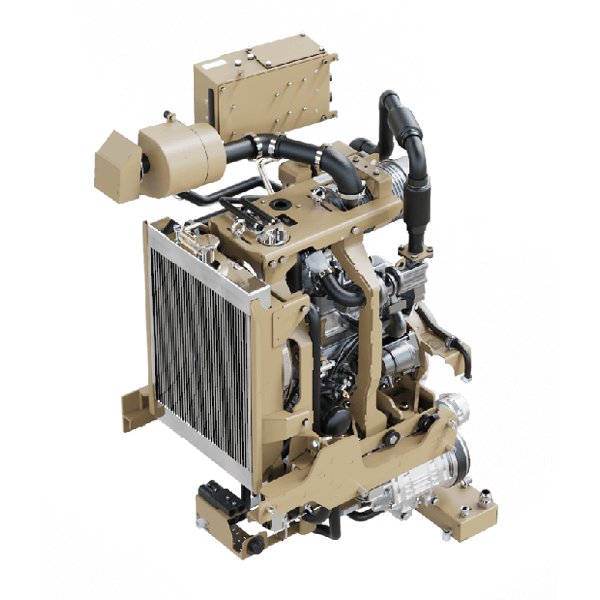

22kW AUXILIARY POWER UNIT APU FOR URBAN SPECIAL FORCES VEHICLES

Ref no. MVK-APU

A modular 22kW Auxiliary Power Unit (APU) (Derated 17kW in 55°C Ambient) with 28 VDC 270A (230A @ 55°C) brushless alternator to:

  • Supply 28 VDC, 85A to charge the vehicle batteries.
  • Supply 28 VDC, 85A for the air conditioning system.
  • Belt driven 14kW ACU compressor.

The APU/ACU system does not restrict the standard operational features of the vehicle in terms of mobility. The APU system shares the vehicle’s batteries and fuel tank, but the system can be equipped with its own battery pack and fuel tank. The system uses quick coupler connections for easy APU removal without losing the refrigerant charge.

The electrical connections, looms between the aircon, power units, electronic control panels and electrical control gear are designed and selected for operation in military environments, which include adverse temperatures, EMI/EMC as well as severe shock and vibration.

The aircon and power units are equipped with custom designed electronic controllers, capable of all control and safety functions. The APU runs at a fixed speed, but automatic engine speed regulation is available as an optional extra. The system has a Bluetooth login interface for remote monitoring via a smartphone app and/or laptop. Installation of the units requires minimal vehicle modifications. SME can also “repackage” this system in an enclosure which would fit any client’s requirements.

Specifications
Product Video

1

Modular

Fully Self contained with only Electrical Power Connection & Installation Interfaces.

2

Adverse Conditions

Design & Built to still give 100% Performance in extreme ambients of -10°C to 55°C.

3

Extreme Shock and Vibration

Typical Mobile Applications. Fatigue qualified for continuous and irractic shock and vibration.

4

Slim Design

Designed to blend with Vehicle Ergonomics and Esthetic Design.

5

Mil.Std 810 & 461 Qualified

Design, Manufacturing and Qualification Conform to International Military Standards.

Click to expand Gallery images

Specifications

Ref. MVK-APU

Output Power Capacity

17kW Derated @ 2600 rpm in 55°C Ambient

Operating Envelope

-10°C to 55°C

Fuel

Fuel supplied from vehicle fuel tank

28VDC output power

170A @ 55°C Derated (Brushless Alternator)

Fault Finding

HMI / Bluetooth

Dimensions

720mm L x 570mm W x
1185mm H

Weight

380 kg

Batteries

Vehicle Batteries

Start Up

Remote automatic from HMI

Dust Filtration for Combustion Air Intake (designed for 500mg/m3 sand & dust)

95% efficient cyclones with exhaust venturi +

Secondary pleated media dust filter

Load Control

None. Fixed Speed Operation (full load control available as optional extra)

ACU Interface

14kW ACU belt driven compressor mounted on APU

OPTIONAL EXTRAS

Fuel

60 - 80L Fuel Tank

28VDC Output Power

230A @ 55°C Derated (Brushless Alternator)

Batteries

120Ah @ 28VDC

Load Control

Dynamic Engine Speed Control to match load
