Vehicle Hatches
Ref. DSFRAMECH

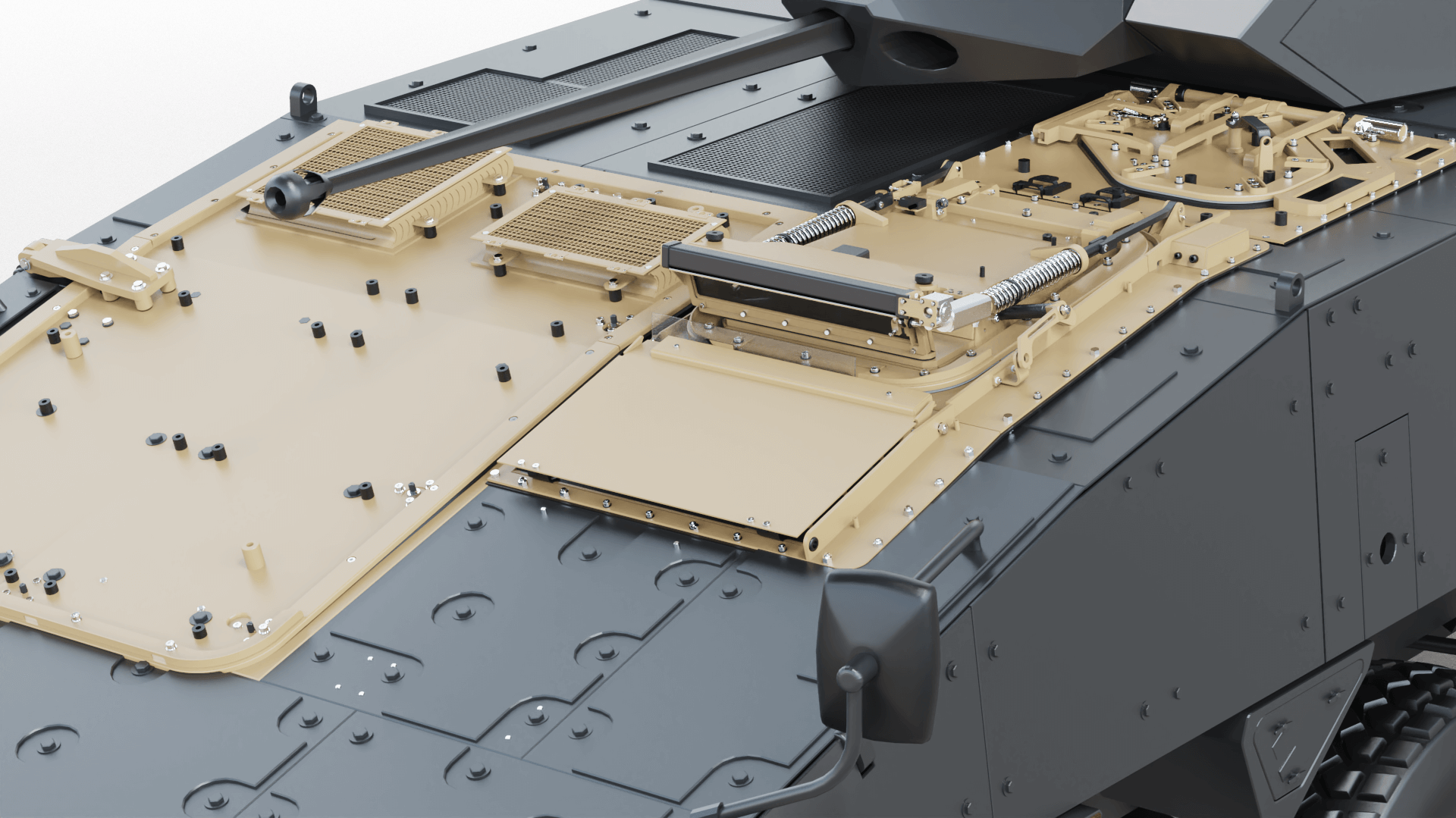

COMMANDER HATCH
This hatch is designed for a single person and generally installed in the commander position of the vehicle. The hatch is equipped with a CBRN rubber seal and optional periscope mounts for visibility to outside when the hatch is closed. Mounting points for add-on armour on outside and spall liners can be added/removed to meet client requirements.
DRIVERS HATCH
This assembly is very specific and should be used as a driver hatch. The hatch can be fully opened to gain access to the driver’s compartment. The hatch can be secured in two positions namely: normal driving mode (visibility via a normal glass window) and engagement mode (via periscopes). The hatch is equipped with a CBRN rubber seal. Mounting points for add-on armour on outside and spall liners can be added/removed to meet client requirements.
REAR HATCH
This assembly comprises of two adjacent hatches which are generally installed on the rear of the vehicle. Each hatch is equipped with a CBRN rubber seal. Mounting points for add-on armour on outside and spall liners can be added/removed to meet client requirements. The option to remove one hatch and integrate a CBRN, HVAC or Ventilation system is also possible.
Specifications
Product Video
1
Extreme Shock and Vibration
Typical Mobile Applications. Fatigue qualified for continuous and erratic shock and vibration.
2
Slim Design
Designed to blend with Vehicle Ergonomics and Esthetic Design.
3
Rugged & Reliable
Solid construction for rough terrains and potential mechanical damage.
4
Mil.Std 810 & 461 Qualified
Design, Manufacturing and Qualification Conform to International Military Standards.
Click to expand Gallery images
Specifications
[private role="subscriber"]
COMMANDER HATCH
- Hatch overall size: 860 x 850mm
- Material type: Ballistic material as per client requirement.
- Material thickness: 6mm
- Assisted open/close spring plate mechanisms incorporated into hinge.
- A Hatch closing safety mechanism to keep the door in the open position.
- A Hatch limit switch to indicate to driver if hatch is closed/open.
- The Hatch can be opened from inside and outside.
- The Hatch is lockable from inside and outside.
DRIVERS HATCH
- Hatch overall size: 1500 x 850mm
- Material type: Ballistic material as per client requirement.
- Material thickness: 6mm
- Assisted open/close spring plate mechanisms incorporated into hinge.
- A hatch closing safety mechanism to keep the door in the open position.
- A hatch limit switch to indicate to driver if hatch is closed/open.
- The hatch can be opened from inside & outside.
- The hatch is lockable on inside and outside.
REAR HATCH
- Hatch overall size: 1580 x 1060mm
- Material type: Ballistic (Armour) material as per client requirement.
- Material thickness: Typically 6mm
- Assisted open/close spring plate mechanisms incorporated into hinge.
- A hatch closing safety mechanism to keep the door in the open position.
- A hatch limit switch to indicate to driver if hatch is closed/open.
- The hatches can be opened from inside only. Option for opening from outside is also available.
- Hatch is lockable on inside.
3D View
PDF Download
Application
Login to Access comprehensive content
